3000KG Duplex Webbing Sling

  • 3000KG Duplex Webbing Sling
  • 3000KG Duplex Webbing Sling
  • 3000KG Duplex Webbing Sling
  • 3000KG Duplex Webbing Sling
  • 3000KG Duplex Webbing Sling
  • 3000KG Duplex Webbing Sling

Product Overview:

DMSLING(Xi'an Dumei Machinery Co., Ltd.), as one of the key suppliers to the Chinese military logistics department, produces polyester webbing slings that are known for their stable quality and superior safety performance, enjoying a high reputation across China. With high standards and demands, our products offer excellent value for money. Our sling range has been awarded the German TUV Rheinland, GS certification, and the European CE certification. 3000KG duplex webbing sling is one of the most popular types among polyester webbing slings.

3000KG Duplex Webbing Sling Details

3000KG duplex webbing sling is also called as 2 ply webbing sling, which is produced from double layers (2-ply) of polyester webbings. The safety factor of our 3000KG duplex webbing sling is SF7:1, which means that their design strength is seven times greater than their stated load capacity, providing an additional level of safety and reassurance during lifting operations.

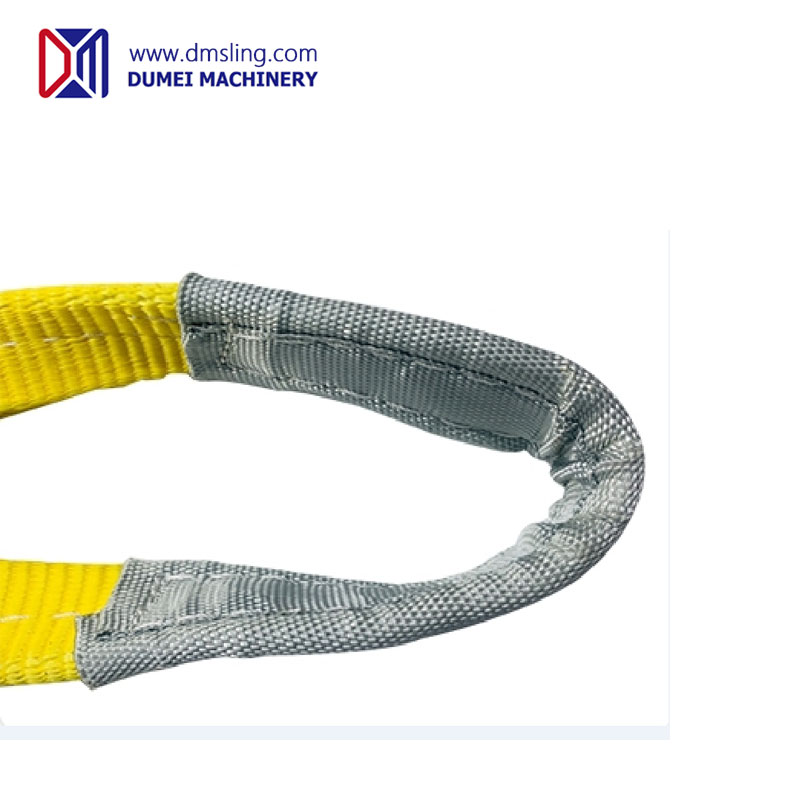

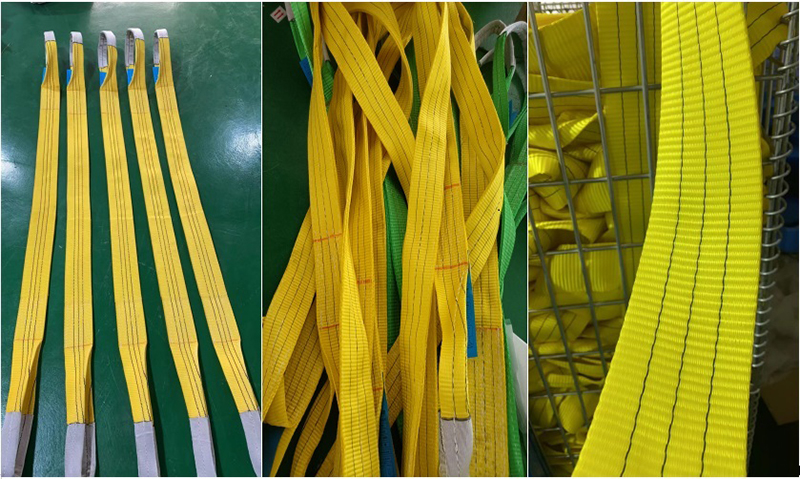

The polyester webbing sling with a safe working load of 3 tons is typically produced with a safety factor 7:1. It has a width of 90mm and a double-layer structure, with two reinforced ring eyes at each end for use in combination with other rigging equipment. The colour is usually dyed into yellow, and the surface of the webbing may be printed with a label indicating a working load limit of 3000 kilograms (WLL 3000KG).

Product Description:

Model: DMFS7EE-3T

Type: Folded Eyes

Material: 100% High tenacity polyester

Construction:  Woven into a flat webbing and double layers  with reinforced eyes in both ends

Safety Factor: 7:1

Working Load Limit: 3 Ton (3000KG)

Breaking Strength: 21 Ton

Width: 90mm

Approx Thickness: 7.5mm

Length: 1-50M

Eye Length: 350mm

Colour: Yellow

Working Temperature: -40°C~100°C

Manufacturing Standard: EN1492-1/A1

Certification: CE & GS issued by TÜV

Of course, we also manufacture polyester double-layer flat lifting slings (duplex webbing sling) with WLL of 1ton, 2 tons, 4 tons, 5 tons, 6 tons, 8 tons, 10 tons, 20 tons, 30 tons, and 50 tons according to European standard EN1492-1. Besides, the endless round slings with WLL range from 1 ton to 1000 tons are available in production.


duplex webbing sling, 2 ply webbing sling, polyester webbing slings

duplex webbing sling, 2 ply webbing sling, polyester webbing slings

duplex webbing sling, 2 ply webbing sling, polyester webbing slings

duplex webbing sling, 2 ply webbing sling, polyester webbing slings

duplex webbing sling, 2 ply webbing sling, polyester webbing slings

duplex webbing sling, 2 ply webbing sling, polyester webbing slings

duplex webbing sling, 2 ply webbing sling, polyester webbing slings

duplex webbing sling, 2 ply webbing sling, polyester webbing slings

duplex webbing sling, 2 ply webbing sling, polyester webbing slings

duplex webbing sling, 2 ply webbing sling, polyester webbing slings

Polyester webbing slings often employ a color-coded capacity range, making it easier for users to select the appropriate sling for their lifting needs.

duplex webbing sling, 2 ply webbing sling, polyester webbing slings

duplex webbing sling, 2 ply webbing sling, polyester webbing slings

Xi'an Dumei Machinery Co., Ltd. is one professinal polyester webbing sling manufacturer in China. We sell slings all over the world, and have a large number of core customers in European and the Middle East.

Please do not hesitate to choose DMSLING as your key sling supplier. Welcome to purchase our duplex webbing sling (2 ply webbing sling) in bulk orders. As well customization is always welcome.
