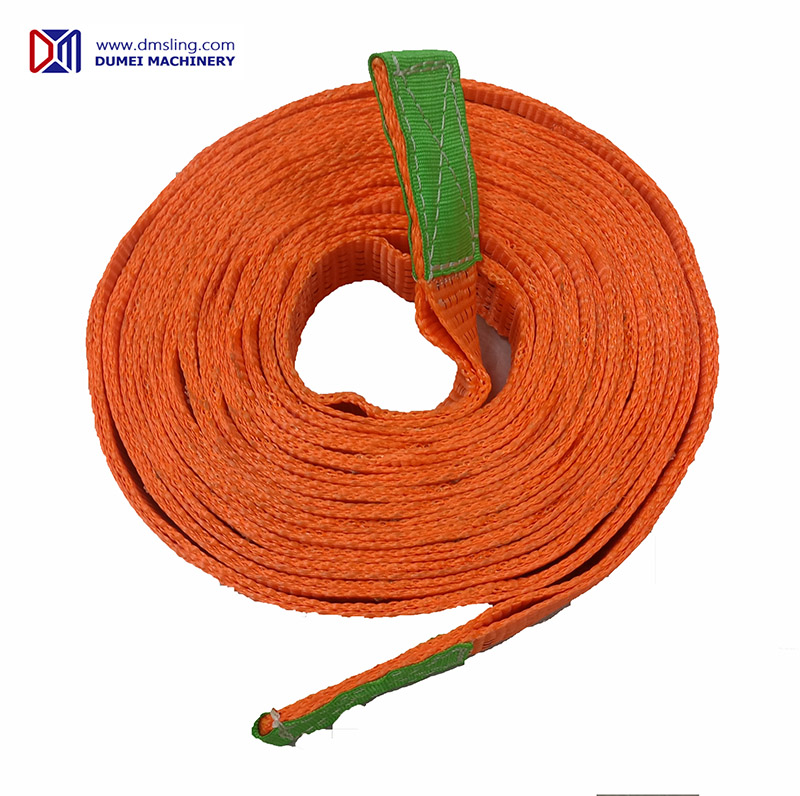

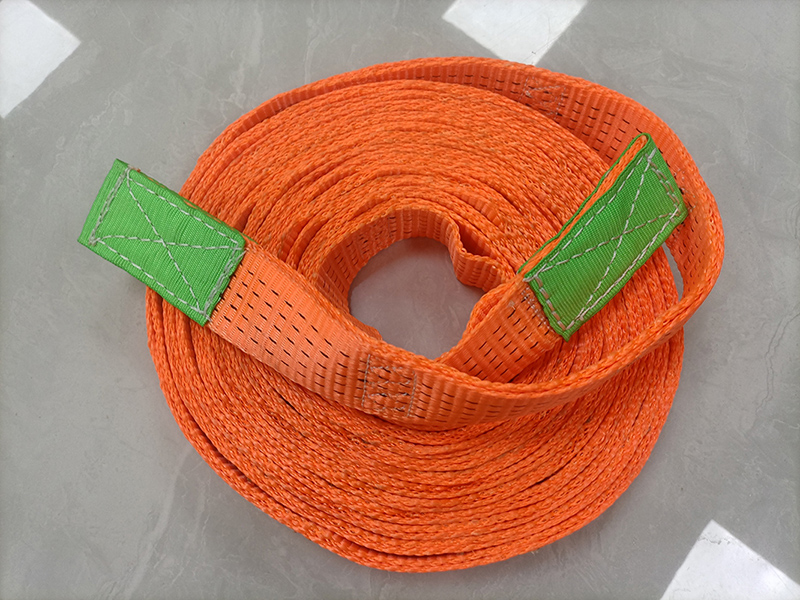

Product Overview:

The double layer recovery strap is made of high intensity polyester webbing, stitched into 2-ply structure and without hooks to anchor. Compared to traditional tow straps with hooks, this new double-layer woven structure with a manual interweaving fixing method is lighter, easier to install and remove.

Double Layer Recovery Strap for Vehicles Details

The double layer recovery strap is made of high intensity polyester webbing, stitched into 2-ply structure and without hooks to anchor.

The 2-ply woven strap is stitched shut every 4 inches (10cm), and the stitched area is approximately 1 inch (2.5cm) wide, repeating this pattern until the end. The entire tow strap forms "countless" 4-inch-sized loops. At both ends of the tow strap, an additional layer of abrasion-resistant fabric is added. When in use, simply thread one end through the vehicle's clevis pin, shackle or anchor point, then fold back the tow strap and pull in the opposite direction. Adjust the length as needed, and then thread it through the loops, weaving back and forth. The more times you weave, the greater the pulling force you will achieve.  After completing the towing, simply locate the ends of the crossed sections and pull them out one by one to remove the interweaving. You can then easily detach the tow strap.


Model: DMDLTS-030T

Type: Hooks Free

Material: 100% High tenacity polyester

Construction:  Stitched by double layer webbing with loops down entire length

Advantage: Without hooks to anchor, but by manual weave easily

Safety Factor: 2:1

Safety Working Load: 3 Ton (3000KG)

Breaking Strength: 7.5 Ton (7500KG)

Approx Width: 50mm

Approx Thickness: 7mm

Loop Size: 10cm

Stitches Width: 25mm

Effective Working Length: 3M, 6M, 9M, 15M, 20M, 30M

Colour: Orange, Blue, Red, Black and Customized Colour

Working Temperature: -40°C~100°C

Of course, we also manufacture such 2-ply towing slings with SWL of 1 tonne, 2 tonne, and 5 tonne.
